Fiat Ulysse Free Download PDF Factory Service Manual / Repair Manual

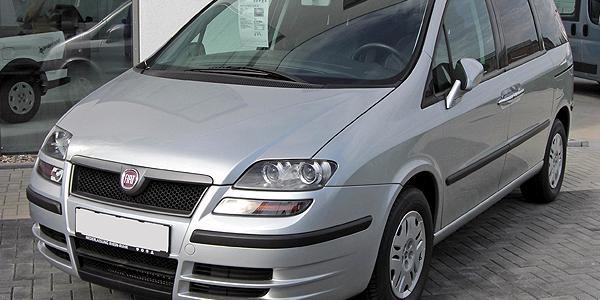

Fiat Ulysse Workshop Service Manual : 2002 - 2010

Fiat workshop service manual for the Fiat Ulysse built from 2002 to 2010. This manual details all repairs and maintenance details for the mechanical systems including driveline (engine, gearbox, front axles), suspension systems, braking systems and steering components along with body, chassis and electrical systems including body panels, glass replacement, bumpers, interior components, lighting systems and electrical wiring including wiring diagrams. Diagnostic advice is also provided.

Fiat Ulysse Vehicle Information

In 2002, the second generation of the Eurovans was launched. The 807 itself was launched in June, followed by the C8 in July. The floorpan, wheelbase, and postponement were not transformed, but all exterior dimensions, including front and rear tracks, were increased. The increase in length of almost 30 cm greatly enhanced interior volume. The new Eurovans were afforded a much more bubbly, contemporary look, along with a modern looking dashboard with centrally mounted gauges.

The differences between the various versions were more marked, surrounding full front fascias and rear sections (including head and tail lights), as well as different interior colour themes. The middle and third row seats now had fore/aft sliders to increase flexibility and also adjustable backs. As with the first generation, a three seater bench seat was available in the third row, slotting into the standard third row seat runners, with back-lowering and tilt forward arrangements to increase boot space.

The Fiat and the Lancia were slightly wider than PSA vans, and the Phedra was also longer than other Eurovans.

The Citroen C8 and Peugeot 807 also got two light facelift : the first one in February 2008, and the second one in 2012.

Source: Wikipedia
